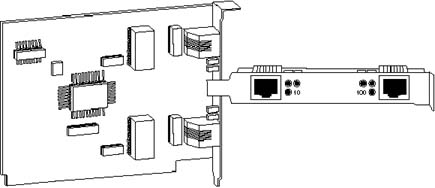

|Product CN-7868 - 100 Base-TX/10Base-T Selectable PCI Cat-5 UTP NIC
The CODENOLL CodeNet CN-7868 represents the latest in high-performance PCI 10/100 Mbit network interface cards. This dual-speed card provides cost effective 10 and 100 Mbit operation for the new generation of high-performance Pentium and Alpha-based machines with PCI bus.The DEC 21140 chip’s unique architecture provides unparalleled performance. PCI bus mastering minimizes CPU overhead and allows for data transfer speeds of up to 132 Mbps. Minimum packet latency is provided through direct transfer between the adapter and the host PC’s memory to provide maximum network performance.
Independent receive and transmit circuits allow full duplex operation at 10 and 100 Mbps, providing a maximum aggregate throughput of up to 200 Mbps. The card’s full duplex capability allows users to connect the CodeNet CN-7868 directly to high-performance switches for increased throughput.
The CodeNet CN-7868 can reliably exchange data over Category 5 twisted-pair cables for links up to 100 meters. The CodeNet-7868 can also exchange data over multi-mode or single-mode fiber cables when utilized in conjunction with Codenoll’s Media Converter CodeNet-7X9Y series products for link lengths of 450 meters for half duplex operation and up to 2000 meters for full duplex operation
CodeNet CN-7868 network interface cards are compatible with all PCI compliant machines and offer the convenience of plug and play for easy installation. LEDs are located directly on the rear bracket to provide a visible verification of normal operation as well as monitoring of data traffic conditions.
The CodeNet CN-7868 ships with client and server drivers for NetWare, OS/2, Windows 3.11, Windows 95 and Windows NT for Intel-based PCI computers and Windows NT for Alpha-based PCI computers.
Codenollís CodeNet CN-7868 PCI 10/100 Network Interface Card offers the best value available for speed, performance and upgrade ability.
Cost effective solution for 10 Mbit and 100 Mbit Ethernet network connections
PCI plug and play for easy installation
Full duplex communication for a total throughput of up to 200 Mbps
132 Mbit bus transfer rate
DEC 21140 chipset, fully supported under Windows 95
Drivers for all major operating systems
Connectors for 10BASE-T and 100BASE-TX
LEDs for indication of normal operation and for network diagnostics
Complies with IEEE 802.3 10BASE-T and 802.3u 100BASE-TX standards for Ethernet and Fast Ethernet
Compliance: IEEE 802.3u 10BASE-T, 802.3u 100BASE-TX
Bus Compatibility: PCI (Peripheral Component Interconnect)
Network Compatibility: Microsoft Windows 95, Windows for Workgroups, NT, Novell NetWare, OS/2, Banyan VINES, SCO, UNIX, IBM LAN Server (3.0/4.0), DEC Pathworks, other ODI, NDIS, and LLI compliant drivers
Supporting Media: UTP (unshielded twisted pair)
Data Bus: 32-bit
Data Transfer Rate: 200 Mbps in full duplex mode
On Board RAM: 2KB TX / 4KB RX
Buffer: Fast cut-through FIFO (First-In-First-Out)
IRQ (Interrupt Request Line): 5, 9, 10, 11
LED Indicators: 10 Mbps, 100 Mbps, TX (transmit), RX (receive)
Connectors: one (1) 10Mbit 8-pin RJ-45
one (1) 100 Mbit 8-pin RJ-45
Temperature: operating: 0°C – 50°C; storage: -20°C – 70°C
Humidity (non-condensing): operating: 5% – 90%; storage: 5% – 95%
Power: 3.8 W max.
Dimensions: 4.13"W x 5.19"L
