Product CN-7464 - 100 Base-FX Single-Mode SC Connectors, PCI NIC

Overview

   The CODENOLL CodeNet CN-7X6X Series represents the latest in high-performance PCI 100 Mbit network interface cards. These cards provide cost effective 100 Mbit operation for the new generation of high performance Pentium and Alpha-based machines with PCI bus.
   The DEC 21140 chips unique architecture provides unparalleled performance. PCI bus mastering minimizes CPU overhead and allows data transfer speeds of up to 132 Mbytes per second. Minimum packet latency through direct transfer between the adapter and the host PCs memory provides maximum network performance.
   Independent receive and transmit circuits allow full duplex operation at 100 Mbps, providing a maximum aggregate throughput of up to 200Mpbs. The cards full duplex capability allows users to connect the CodeNet CN-7X6X directly to high-performance switches for increased throughput.
   The CodeNet CN-7565 SC or ST can reliably exchange data over 62.5/125 multi-mode fiber optic segments for links up to 2 Km (full duplex). The CodeNet CN-7464 SC can reliably exchange data over 8.3/125, 8.7/125, 9/125 and 10/125m single-mode fiber optic segments for links up to 8 Km (full duplex).
   CodeNet CN-7X6X network interface cards are compatible with PCI compliant machines and offer the convenience of plug and play for easy installation. LEDs are located directly on the bracket to provide a visible verification of normal operation as well as monitoring of data traffic conditions.
   The CodeNet CN-7X6X ships with client and server drivers for NetWare, OS/2, Windows 3.11, Windows 95 and Windows NT for Intel-based PCI computers and Windows NT for Alpha-based PCI computers.

Features

  • Cost effective solutions for 100 Mbit Fast Ethernet network connections
  • PCI plug and play for easy installation
  • Multi-mode and single-mode fiber optics
  • Full duplex communication for a total throughput of up to 200 Mbps
  • Provides links up to 2Km using multimode F/O cable and up to 8Km using single mode F/O cable
  • 132 MBytes bus transfer rate
  • Industry standard DEC 21140 chipset, fully supported under Windows 95
  • Drivers for most major operating systems
  • SC or ST connectors for 100BASE-FX
  • LEDs for indication of normal operation and network diagnostics
  • Complies with IEEE 802.3u 100BASE-FX standards for Fast Ethernet

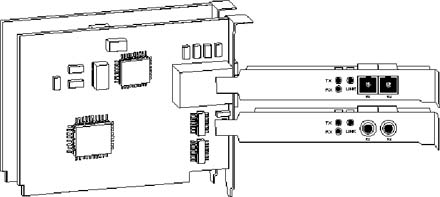

  • Diagram

    Specifications

    Compliance: IEEE 802.3u 100BASE-FX
    Bus Compatibility: PCI (Peripheral Component Interconnect)
    Network Compatibility: Microsoft Windows 95, Windows for Workgroups, NT, Novell NetWare, OS/2, Banyan VINES, SCO, UNIX, IBM LAN Server (3.0/4.0), DEC Pathworks, other ODI, NDIS, and LLI compliant drivers
    Multi Mode:
       Supporting Media: 50/125, 62.5/125 and 100/140 multimode duplex fiber optic for links up to 2Km full duplex
       Wavelength: 1300 nm nominal
       Transmitter Power: -19.0 dBm (Au) onto 62.5/125 m Fiber-22.5 dBm (Au) onto 50/125 m Fiber
    Receiver Sensitivity: -32.0 dBm (minimum)
    Single Mode:
       Supporting Media: 8.3/125, 8.7/125, 9/125m and 10/125 single mode fiber optic for links up to 8Km full duplex
       Wavelength: 1300 nm nominal
       Transmitter Power: -15.0 dBm (minimum); -8.0 dBm (maximum)
       Receiver Sensitivity: -31.0 dBm (minimum)
       Emitter Type: laser
    Data Bus: 32-bit
    Bus Transfer Rate: 132 Mbytes
    On Board RAM: 2KB TX / 4KB RX
    Buffer: Fast cut-through FIFO (First-In-First-Out)
    IRQ (Interrupt Request Line): 5, 9, 10, 11
    LED Indicators: TX (transmit), RX (receive), LINK
    Connector Types: one (1) SC Duplex, or two (2) ST-type connectors
    Temperature: operating: 0C 50C; storage: -20C 70C
    Humidity (non-condensing): operating: 5% 90%; storage: 5% 95%
    Power: 3.8 W max.
    Dimensions: 4.13"W x 5.19"L
